Air Bubble Ginger Washing Machine for Sale

  • Model:GGB-2500
  • Capacity:300-500 kg/h
  • Processed Material: Ginger, suitable for other vegetable washing
  • Voltage:380 v
Features Features
Structure Features of Air Bubble Washing Machine
Air bubble cleaning machine adopts frame structure as a whole, consists of body welded, tank solders, transmission system, and electric control system, etc. According to user's demand, can add brush, cage, realize the cleaning function of different products, to achieve the desired effect.

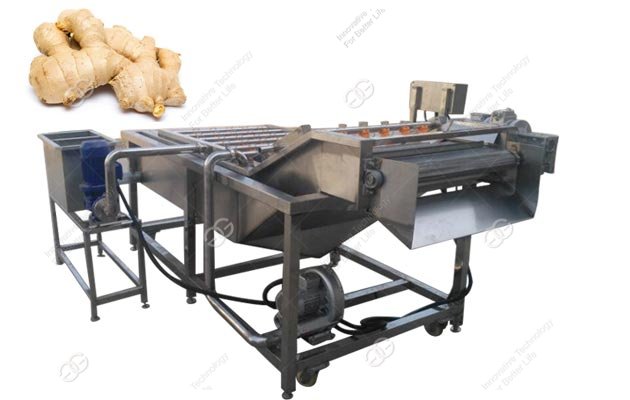

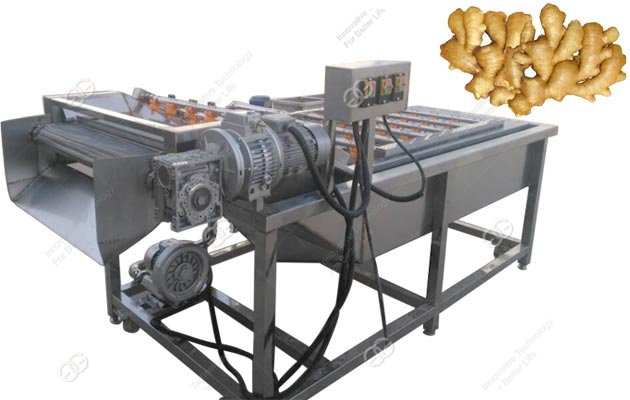

Air Bubble Ginger Washing Machine
Working principle of Bubble Ginger Washing Machine
Air bubble cleaning machine adopts bubble bath cleaning, supplemented by strong water flow, high cleaning ability, washing rate and does not damage the material, after turning over rush to conveyor mesh belt, with high pressure water spray cleaning. This equipment, in addition to the motor and other standard parts, all adopt stainless steel SUS304 material, completely conform to the export of food hygiene requirements. Device is equipped with bubble generator, the materials become rotating, remove surface stains(can match steam heating device to heat the water to the appropriate temperature, hot water washing cleaning), debris discharged from the overflow tank, sediment from the discharge outlet, in order to achieve the purpose of cleaning.

Performance Characteristics Of Air Bubble Ginger Washing Machine
1. This equipment is made of SUS304 stainless steel equipment, delicate appearance, good structural strength, stable conveying, material safety;
2. The device adopts high-temperature wear-resistant nylon chain plate conveyor, scraper conveyor belt with nylon, convenience of lifting materials at large angle;
3. The variable frequency adjustable speed;
4. The machine adopts SUS304 plate bending;
5. Support for the high strength material production, a number of linear welding, structural fastness;
6. Motor and reducer for aluminum alloy material, which has beautiful appearance, anti-corrosion, easy installation, torque, etc;
7. Both sides of the conveyor belt are wear resistant protective design, can prevent the brush material;
8. Bearing uses the vertical bearing, the components use general part, quick installation, long service life.

This machine is suitable for washing ginger, dates, kiwi fruit, all kind of fruit and vegetable, match with drying machine, can form whole set fruit vegetable washing line.
Techinal Data Techinal Data
Model GGB-2500
Capacity 300-500 kg/h
Power 4.75 kw
Voltage 380 v
Dimension 2500*1200*1400mm
Weight 300 kg
