5kg Frozen French Fries Potato Chips Packaging Machine
- Model:GGTCLB-420
- Capacity:5-60 bags per minute
- Processed Material: Frozen french fries, potato chips, rice, etc
- Voltage:220V,50Hz/60Hz
Features
This automatic potato chips packing machine is applicable to automatic packaging of food, medicine, chemical, daily chemical products, hardware accessories, particulate matter, powders, such as biscuits, melon seeds, peanuts, dumplings, meatballs, candy, potato chips, seeds, pepper, milk powder, coffee beans, instant coffee powder, etc.
French Fries Packing Machine Performance
- New design with perfect way, more reasonable structure and advanced technology.
- Imported programmable controller control system, color touch screen, intuitive and efficient operation.
- Using imported servo film transport system and marking sensor standard positioning, perfect packaging.
- Automatic alarm protection to minimize losses
- All kinds of bags, like pillow bags, corner folding bags, hanging bags, etc.

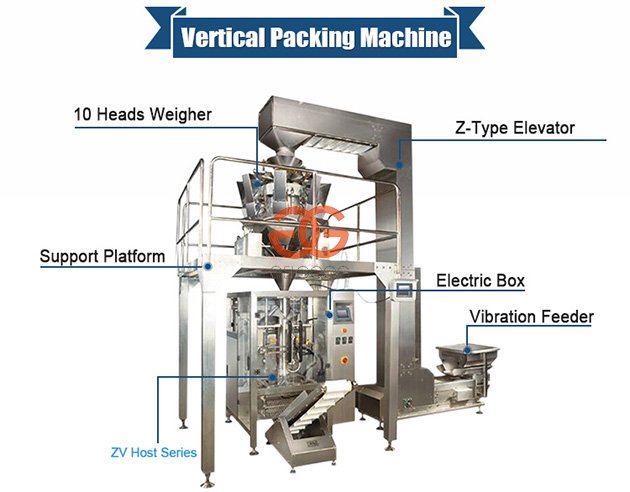

This automatic packing machine composed by ten scales, feeder, support platform, packing device, and other equipment.
The machine is with high precision, high efficiency without crash the materials. It is the deal packing machine of snack and other shops or factories.
Automatic Chips Packing Machine Technical Advantages
- Chinese and English touch screen display, intuitive and simple operation.
- PLC computer control system, running more stable, can adjust any parameters without stopping.
- Ten sets of parameters can be stored, and the replacement variety is more accurate.
- The servo motor is used for pulling and the positioning is more accurate.
- Independent temperature control system with an accuracy of ±1 °C.
- Horizontal and vertical sealing temperatures are independently controlled, and can be applied to various packaging materials such as composite membranes and PE membranes.
- The style of the package is diverse, back sealing, gusseting, bagging, punching, etc.
- Bags making, sealing, packaging, printing date is completed in one go.
Techinal Data
Model | GGTCLB-420 |
Film Width | Max 420mm |
Bags Length | 80-300mm |
Bags Width | 60-200mm |
Roll Film Diameter | Max 320mm |
Packing Speed | 5-60 Bags/Minute |
Weighting Range | 150-1500ml |
Film Thickness | 0.04-0.08mm |
Voltage | 220V,50Hz/60Hz |
Power | 2.2Kw |
Machine Dimension | 1217*1050*1343mm |
Machine Weight | 650Kg |
